Quick Details
- Type: COB LED
- Model Number: Integrated
- Chip Material: AlGaInP
- Emitting Color: red,blue,yellow,violet,far-red,white
- Luminous Intensity: 5000mcd
- Luminous Flux(lm): 5000
- Optical Attenuation(%): 2
- Power: 50W
- Power Dissipation: 10%
- Viewing Angle(°): 120 Degrees
- Color Rendering Index(Ra): 75
- Color Temperature: RGB
- Operating Temperature(℃): -20 - 50
- Storage Temperature(℃): -30 - 80
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Vanq
- Certification: CE, RoHS
- Product name: grow light led cob integrated
- Drive current: 1.75A
- Voltage: 21.6-25.4V
- Wavelength: 660nm : 630nm:595nm:470nm:440nm:380nm:730nm
- Chip QTY: 50pcs
- packaging: 18PCS/bag
- Application: for plant grow
- Warranty: 2 Years
- Lifespan: 50000 Hours
- Chip Brand: Epileds Epistar Bridgelux

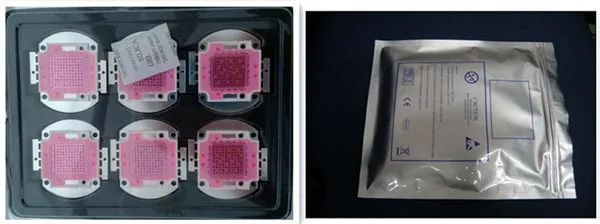

Packaging & Delivery
| Packaging Details: | Standard export carton or customized |
|---|---|
| Delivery Detail: | Shipped in 3 days after payment |
50W high power multiband COB LED grow light chip,copper holder chip
Feature
1. 50W COB LED chip have accurate wavelength & high par value LED , making sure plant absorption the light that the need ,promoting plant growth and production.
2. Adopt original Bridgelux,Epistar& Epileds brand led chips.
3. The array and color ratio of the led grow chips could be customized.
| Parameter | |
| Item Model | VQ-G050-ZE7 |
| Dimension | 56*40*4.3mm |
| Power | 50W |
| Voltage | 21.6-25.4V |
| Wavelength | 660nm:630nm:595nm:470nm:440nm:380nm:730nm |
| Chip QTY | 50PCS |
| Drive current | 1.75A |
| Working temperature | subzero20~50℃ |
| Radiation angle | 120° |
| Plate package | 18pcs/Bag |
Material:
1.Led chips are genuine,originally imported BridgeLux in the USA and Epileds from Taiwan.
2.We utilize Phosphor Intematix from the USA and Grand from Taiwan.
3.We use red copper led holder,with good heat management performance.
4.Gold Thread are original Konarka with 1.24mil and high gold purity 99.999%
Application
1. Red light promoting the Chlorophyll A and B for photosynthetic, promoting the formation of stem, root, head .etc. Blue light helpful for plant photosynthetic, promoting green leaf growth, Protein synthesis, Fruit formation, increase the production yield and shorten the incubation period. The perfect red/blue color ratio can provide a well supplementary light effectiveness.
2. Available for various color ratios, i.e. red :blue =1:1,1:2,5:1, etc. LED chip brand, flux and wavelength are acceptable to customize.They are widely applied for indoor garden, greenhouse, gardening flower bed, basement etc.
3. Healthy and environmental protection: without mercury, sodium etc hazardous substance
4. Energy saving, low power consumption, super brightness
5. Durability, lifespan more than 20,000-50,000hours.
50w
30w
100w
Other spectrum:
Full spectrum
Red:blue
Application Notes
Storage
- Before opening the package, the LED should be kept under the condition ≤30℃/90%RH. After opening the package, the LED should be stored under the condition ≤30℃/70%RH.
- The LED should be used within a year. And after opening the package, the led should be used within 168 hours(7 days).
- If the desiccant is faded or the led have exceeded the storage time, re-baking is required under the condition: 60+-6℃/ 24hrs.
- The surface of LED is prone to attach dust so the relevant steps should be taken to keep the emitter free of dust.
Handling
Handle the component along the side surfaces by using forceps of appropriate tools. The forceps or other appropriate tools should not put any pressure on the lens, it’s also strictly forbidden to poke and press the lens.
Electrical
- The LED can not be drove reversely.
- It’s necessary to have the measures to limit the current otherwise slight voltage shift may cause enormous current change and results in the failure of LED.
- It is recommended that the drive current should be lower when the light output is enough for applying. It would be helpful to improve the product’s reliability.
Antistatic
The LED are electrostatic sensitive devices, so antistatic steps should be taken during the processing.
