Quick Details

  • Light Source: LED
  • Item Type: Grow Lights
  • LED Light Source: Integrated Grow Light LED
  • Input Voltage(V): DC 22-26V
  • Lamp Power(W): 30
  • Lamp Luminous Flux(lm): 300-360
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 75
  • Color Temperature(CCT): RGB
  • Working Temperature(℃): -20 - 40
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: depend on cover
  • Certification: CE, RoHS
  • Emitting Color: RGB
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: VANQ
  • Model Number: VQ-G30
  • Name: Integrated Grow Light LED
  • Chip QTY: 10PCS
  • led source: epistar, cree ,Bridgelux,Epileds
  • dimension: 45mil/38mil/35mil
  • Drive current: 1.05A
  • surpport: red bronze
  • Viewing angle: 120°
  • Color ratio: customizable
  • Wavelength: customizable
  • Warranty: 2 years

Packaging & Delivery

Packaging Details: Anti-static bag standard export package or customed,OEM package is ok
Delivery Detail: Shipped in 25 days after payment

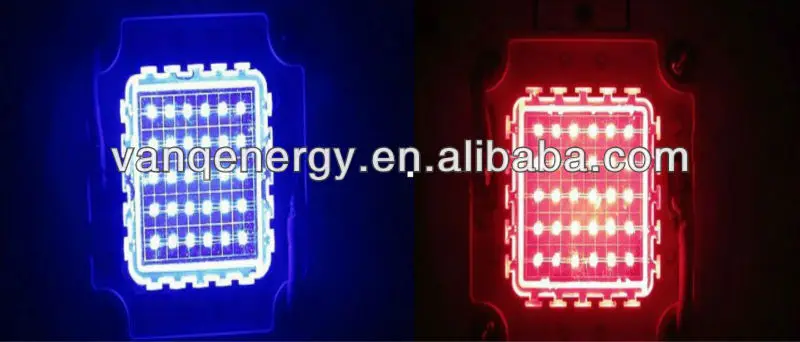

integrated cob led grow light 100w high performance cxb3590 led cob grow light cob



Specification about 30w grow light led:

Name: Integrated Grow Light LED


Power:30W


Chip QTY: 30PCS


Voltage: DC 22-26V


Drive current: 1.05A


Emitting color: red and blue


Viewing angle:120°


Color ratio:customiable. red/blue 4:1,5:1,7:1,8:1,9:1 etc.


Wavelength: customizable. red 620nm 630nm,640nm,660nm,blue 440nm,460nm.



Feature about 30w grow light led:

1) Red light is very important to plant reproduction. Phytochrome pigments absorb the red and far red portions of the light spectrum and regulate seed germination, root development, tuber and bulb formation, dormancy, flowering and fruit production.

Blue light stimulates Chlorophyll production more than any other color, encouraging thick leaves, strong stems and compact vegetative growth.

So the right color ratio will offer good supplemetal effect for plants, accurate wavelength and higher radiation flux will ensure plants absorb enough lights, promote growth and propagate.



2) Various light color ratio for your choice,Customized led chip, radiation flux, wavelength available.



3)Green & Healthy, no harmful items included such as mercury, sodium



4)Energy-saving, lower power, high brightness



5)Durable, lifespan above 50000 hours







Advantages:





1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%;



2, long life: product life of up to 50,000 hours;



3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;



4, a large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;



5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;





6, color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.







Start vanq is your best choice



1. Professional manufacturer of high power led for more than 5 years experience



2. Fully automatic production machine and quality checking machines



3. Own unique encapsulation technology. high-quality R&D team. special design.



4. Orignal Epileds,Epistar/Bridgelux/Epileds chips



5. All leds 100% QA passed before shipped







Attention-Handwork Soldering:



1. During the soldering, the electronic soldering iron must be kept under the tempetature of 300°C and the soldering time must not be beyond 3 seconds. No touch between the electronic slodering iron and colloid.



2. Handwork soldering is only allowed once. We won't take responsibility for more than that.



3. void using sharp objects to compress products colloidal part directly.



4. Please put on the antistatic hand loop during the use. The worktable should be with antistatic finish. The equipments must be contacted with ground.





Our Service



1 We have our own independent R&D department, On existing products for better maintenance, we still continue to develop high-tech products, We have our own patented products.

2 Our products must pass strict quality control procedures.

3 We have advanced production equipment

4 We use the raw materials are from domestic and foreign well-known brand manufacturers.

5 After repeated tests before shipment.







Buyer Reading:





1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution



2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be













multi-spectrum:red660nm,630nm,Far red 730nm,IR 850nm,940nm,blue 430nm,440nm,450nm,460nm,470nm,UV400nm-420nm,UVA365nm-380nm







♦Why is blue light important for plants?



Blue light stimulates Chlorophyll production more than any other color, encouraging thick leaves, strong stems and compact vegetative growth;



Blue color is good for leaf and root growing.The wavelength have 450nm and 470nm, if your botany only leaf ,we recommend us 470nm, if you wanna it is good for root, so we recommend use 450nm







♦Why is red light important for plants?



Red light is very important to plant reproduction. Phytochrome pigments absorb the red and far red portions of the light spectrum and regulate seed germination, root development, tuber and bulb formation, dormancy, flowering and fruit production;



red is good for blooming ,the wavelength is 660nm and 630nm, if you plant flower,we recommend you use 630nm, if you plant blossom and yield fruit,we recommend you choose 660nm





Related products







RGB 10W/30W/60W/90W LED









Series of LED for plant light (20w-100w plant led chips)

series of white led 1w-500w

New encapsulation technology of led mixed up colorful led chips with white led chips

blue and red led 50w led



Application











Check out our other chips, all powers are available
